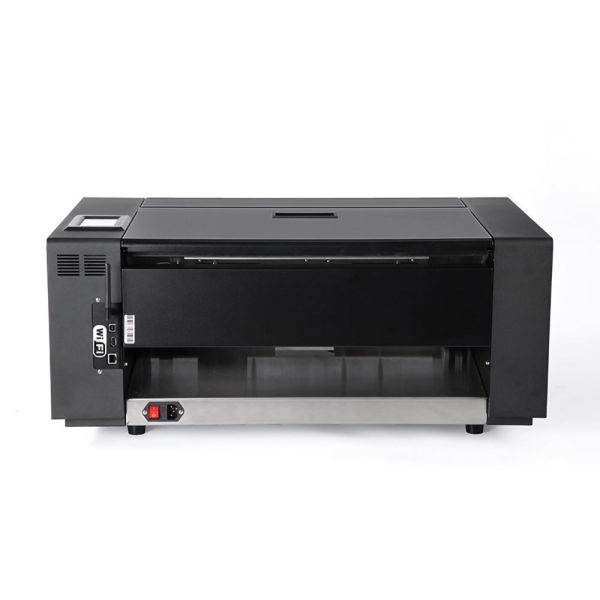

Anycut ZKSV370 CCD Camera Auto Contour Cutting Die Sticker Cutter with 4.3inch Touch Screen

Product Categories
Hefei Anycut CNC Equipment Co., Ltd.
Trust Seal
Verified Supplier
Credit Check
Supplier Assessment
Contact Now

Anycut ZKSV370 CCD Camera Auto Contour Cutting Die Sticker Cutter with 4.3inch Touch Screen

Brand Name : Anycut

Model Number : ZKSV370

Certification : CE/FCC/RoHS

Place of Origin : shenzhen

MOQ : 1 piece

Price : $1356~1542/piece

Payment Terms : T/T,Western Union

Supply Ability : 1~4 pieces/2 days;5~30 pieces/15 days;31~100 pieces/20 days

Delivery Time : 20~30 work days

Packaging Details : L890mm*W580mm*H570mm

max cutting width : 360mm

Auto contour cut : Camera(automatically contour cutting)

control panel : 4.3 inch touch screen

blade type : Rowland blade

max thickness material : 450gsm

max cutting speed : 1600mm/s

connect or interface : USB cable/Udisk/web cable/WIFI

suitable cutting material : self-adhesive sticker/coated paper/PVC

support software : CDR/AI/PS/Contour software/Signmaster(optional)

support system : All version windows

Contact Now

Anycut ZKSV370 CCD Camera Auto Contour Cutting Die Sticker Cutter with 4.3inch Touch Screen



The ZKSV370 is a professional-grade cutting plotter powered by a high-speed servo motor, delivering a max cutting speed of 1600mm/s for exceptional efficiency. It offers both full and half-cut capabilities to handle a wide range of applications, from stickers and labels to intricate business cards and automotive films.

Equipped with an intelligent camera system, it enables automatic contour cutting by identifying QR codes, ensuring precise alignment and cutting paths every time. The user-friendly 4.3-inch touchscreen control panel and flexible connectivity options (USB, U-disk, Ethernet, and WiFi) make operation seamless and adaptable to any workflow.

Its robust construction, featuring a Roland blade, ensures a cutting accuracy of ±0.01mm and repeatability of 0.082mm, handling materials up to 450gsm in thickness, including self-adhesive stickers, coated paper, and PVC. It supports industry-standard software like CDR, AI, PS, and Contour software, making it a versatile solution for both small businesses and professional production environments.



MODEL ZKSV370
Max. media width 370mm
Max. cutting width 360mm
Auto contour cut Camera (automatically contour cutting)
Control panel 4.3inch touch screen
Motor High speed servo motor
Positoning mode Qr code/Dot/Right angle
Number of heads 2
Blade type Rowland blade
Packing size L 890mm*W 580mm*H 570mm
Machine size L 768mm*W 455mm*H 336mm
Gross/Net weight 47kgs/42kgs
Cutting accuracy +/- 0.01mm
Repeatability 0.082mm
Max.material thickness 450gsm
Max. cutting speed 1600mm/s
Max.force 1600g
Connect or interface USB cable/Udisk/web cable/WIFI
Power ﹤150w
Working environment ﹢5℃-﹢35℃
Power supply 100v-240v(adaptive)
Suitable cutting material Self-adhesive sticker/coated paper/PVC
Support software CDR/AI/PS/Contour software/Signmaster(optional)
Memory 1G
Support system All versions of windows



Anycut ZKSV370 CCD Camera Auto Contour Cutting Die Sticker Cutter with 4.3inch Touch Screen

Anycut ZKSV370 CCD Camera Auto Contour Cutting Die Sticker Cutter with 4.3inch Touch Screen
